INTEX Pool Metal Frame 10'x30" Round Outdoor Swimming Pool Set Instruction Manual

1. Продукт закончилсяview

This manual provides essential information for the safe and efficient use of your Intex 10'x30" Metal Frame Pool Set. This set includes a durable metal frame pool, a filter pump, a protective pool cover, and Type H filter cartridge replacements. Designed for outdoor recreational activities, this pool offers a convenient and enjoyable swimming experience.

Figure 1.1: Complete Intex 10'x30" Metal Frame Pool Set including the pool, filter pump, six filter cartridges, and a pool cover.

2 Компоненты и особенности

Your Intex Pool Set comes with the following components and features:

• Swimming Pool Set: Includes a filter pump, a protective above-ground pool cover with drain holes to hinder water accumulation, and a 6-pack of Type H filter cartridges.
• Pool Maintenance Made Easy: Type H filter cartridge replacements ensure healthier and cleaner water for your pool and are made from Dacron filter material that provides a simple clean and replacement process.
• Durable Frame And Liner: Round, sturdy metal-frame construction provides a simple setup with a drain plug for lots of water fun with a durable PVC liner that resists the elements.
• Ensuring A Clean Pool: Durable and versatile pool covers for above-ground pools serve as a pool leaf net cover or a winter pool cover and come with nylon ropes to keep your pool water clean.
• Outdoor Swimming Pool: Ideal for outdoor water recreational activities having the dimensions of 10-foot by 2.5-foot and a 330 GPH model 28601EG pump, which is a popular choice for pools above ground.

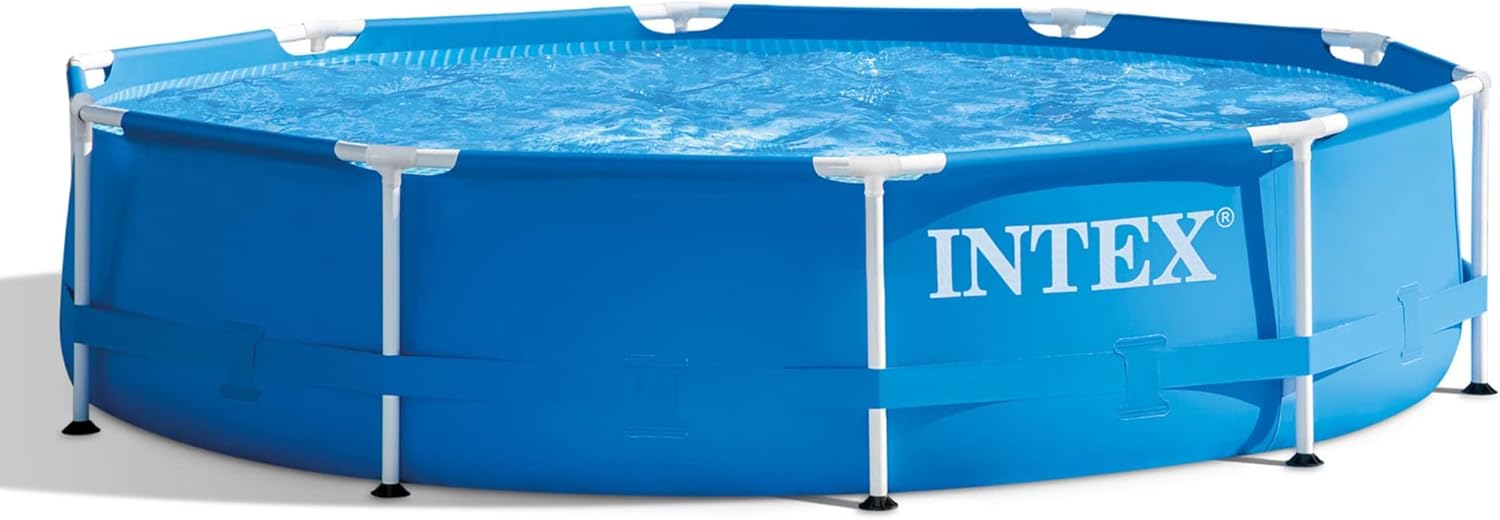

Figure 2.1: The sturdy metal frame construction of the Intex pool, designed for stability and durability.

Figure 2.2: A pack of six Type H filter cartridges, essential for maintaining water clarity and hygiene.

3. Инструкции по настройке

Follow these steps for proper assembly and setup of your pool:

1. Подготовка места: Choose a firm, level surface free of sharp objects, debris, and excessive vegetation. Ensure the area is large enough to accommodate the pool (10 ft diameter) and provide adequate space around it for access and the filter pump.
2. Распаковываем компоненты: Carefully unpack all parts and lay them out on a clean, soft surface. Verify all components are present according to the packing list.
3. Собрать раму: Connect the metal frame components as per the included diagram. Ensure all connections are secure and properly aligned.
4. Установите вкладыш: Spread the pool liner evenly within the assembled frame. Ensure the drain plug is accessible and properly sealed.
5. Fill Pool Partially: Begin filling the pool with water. As the water level rises, smooth out any wrinkles in the bottom of the liner, working from the center outwards. Fill the pool to approximately 1-2 inches (2.5-5 cm) of water.
6. Подключите фильтрующий насос: Attach the filter pump to the designated inlet and outlet connections on the pool liner using the provided hoses and clampУбедитесь, что все соединения надежно затянуты, чтобы предотвратить протечки.


   Figure 3.1: Illustration of connecting the filter pump hose to the pool's inlet/outlet valves.
7. Complete Filling: Continue filling the pool to the recommended water level, typically indicated by a fill line on the liner or approximately 80% capacity (24 inches / 60.96 cm water depth).

4. Инструкция по эксплуатации

The included 330 GPH filter pump is crucial for maintaining clean pool water.

• Начальная операция: After filling the pool and connecting the pump, ensure the filter cartridge is correctly installed inside the pump housing. Plug the pump into a grounded electrical outlet. The pump will begin circulating water, filtering out debris.
• Daily Filtration: Operate the filter pump for 2-10 hours daily, depending on usage and water conditions, to ensure optimal water clarity. Refer to the pump's specific manual for detailed operating cycles.
• Технология гидроаэрации: The pump utilizes Hydro Aeration Technology to improve filtration, clarity, and freshness. This process injects air into the water, accelerating circulation and helping fine particles cluster for more effective filtration.


  Figure 4.1: Visual representation of Hydro Aeration Technology, which enhances water circulation and clarity.

5. Техническое обслуживание

Regular maintenance is key to prolonging the life of your pool and ensuring clean water.

• Очистка/замена фильтрующего картриджа:

  The Type H filter cartridges should be cleaned regularly (e.g., every few days) by rinsing with a garden hose. Replace cartridges every 2-4 weeks, or sooner if they remain dirty after cleaning.

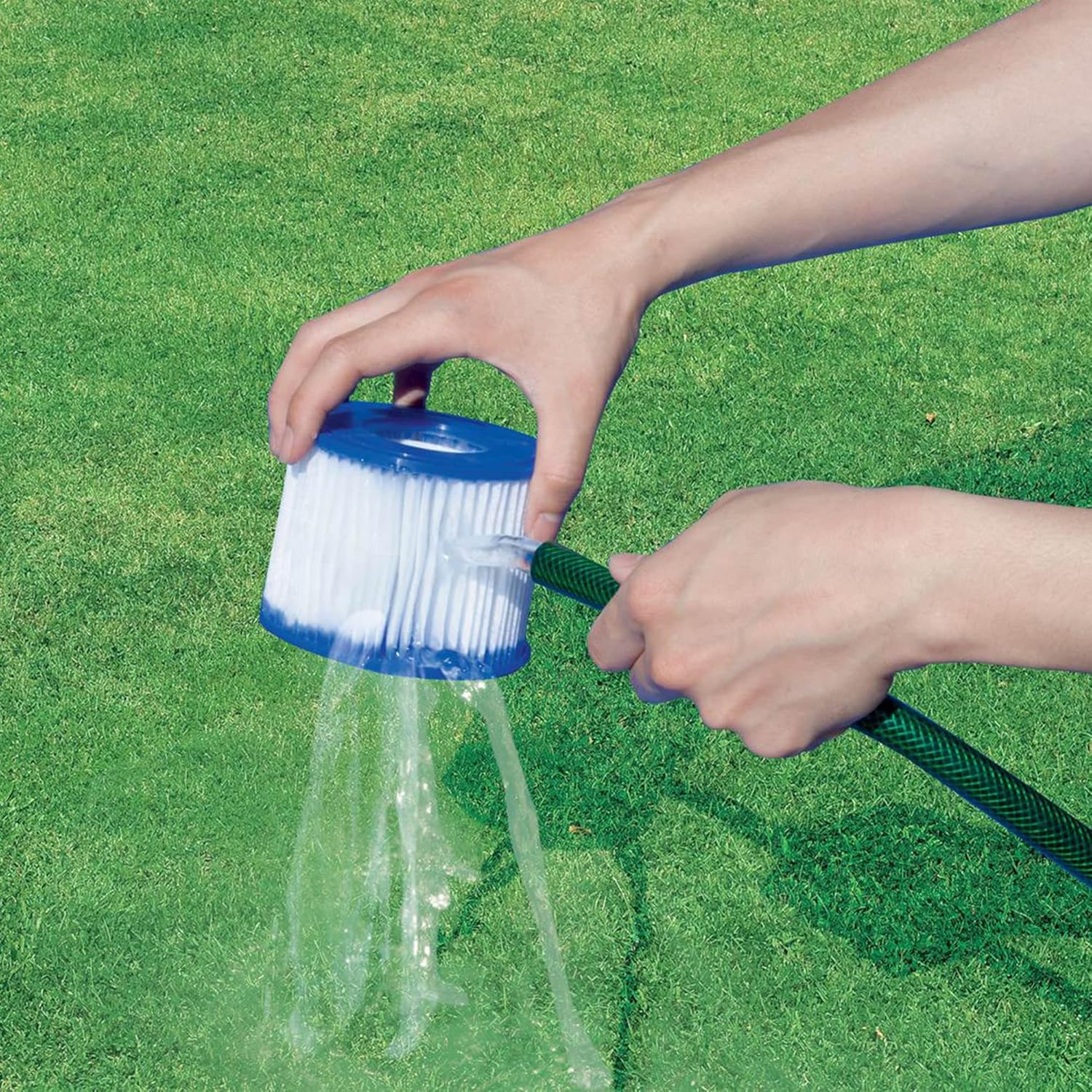

  Figure 5.1: Demonstrates the process of cleaning a Type H filter cartridge using a garden hose.



  Figure 5.2: Shows how to correctly insert a clean or new filter cartridge into the pump's housing.

• Pool Cover Usage: Use the included pool cover when the pool is not in use to prevent debris from entering the water and to reduce evaporation. The cover features drain holes to prevent water accumulation on top.


  Figure 5.3: The Intex pool with its protective green cover in place, securing the pool when not in use.
• Химия воды: Regularly test and balance your pool's water chemistry (pH, chlorine, alkalinity) using appropriate pool chemicals. Follow guidelines from a reputable pool chemical supplier.
• Подготовка к зиме: For colder climates, properly drain and disassemble the pool for winter storage to prevent damage from freezing temperatures. Clean and dry all components before storing in a dry, protected area.

6. Поиск Неисправностей

В этом разделе рассматриваются распространенные проблемы, с которыми вы можете столкнуться:

7. Технические характеристики

Figure 7.1: Diagrams illustrating the pool's dimensions, water depth, and water capacity.

8. Гарантия и поддержка

For warranty information, technical support, or to order replacement parts, please contact Intex customer service. Keep your purchase receipt and product model number handy for faster service.

You can find more information and contact details on the official Intex webсайте или через вашего розничного продавца.
