ONN Tilting TV Wall Mount

Введение

Thank you for choosing the ONN Tilting TV Wall Mount. This manual provides essential information for the safe and proper installation, operation, and maintenance of your new TV wall mount. Please read this manual thoroughly before installation and keep it for future reference.

This wall mount is designed to securely hold flat-panel televisions ranging from 32 inches to 47 inches, offering a tilting feature for optimal viewing angles. Its robust construction ensures stability and durability.

Информация по безопасности

ПРЕДУПРЕЖДЕНИЕ: Failure to read and follow all instructions can result in personal injury, property damage, or voiding of warranty. Improper installation may result in serious injury or death.

• Do not install into drywall alone. The mount must be secured to a wooden stud, concrete, or brick wall.
• Убедитесь, что конструкция стены может безопасно выдержать суммарный вес крепления и телевизора.
• Не превышайте максимально допустимую нагрузку в 88 фунтов (40 кг).
• Данный продукт предназначен только для использования внутри помещений.
• Always use an assistant for lifting and positioning the television.
• Перед использованием убедитесь, что все соединения надежны.
• Не допускайте детей и домашних животных к месту установки.

Содержимое упаковки

Please check to ensure all components are present and undamaged. If any parts are missing or defective, contact customer support.

• Сборка настенной пластины
• Кронштейны для телевизора (2)
• Комплект крепежных элементов (различные винты, шайбы, прокладки, дюбели)
• Руководство по эксплуатации

Настройка и установка

Before beginning, ensure you have the necessary tools: stud finder, drill, level, Phillips head screwdriver, tape measure, pencil.

Шаг 1: Определите место установки

Use a stud finder to locate the center of a wooden stud in your desired mounting location. Mark the stud's edges. For concrete or brick walls, ensure the wall is solid and free of obstructions.

Шаг 2: Прикрепите настенную пластину к стене

Position the wall plate at the desired height and use a level to ensure it is perfectly horizontal. Mark the drilling locations through the holes on the wall plate. Drill pilot holes into the stud or use appropriate anchors for concrete/brick. Secure the wall plate to the wall using the provided lag bolts and washers.

Figure 1: Main assembly of the ONN Tilting TV Wall Mount. This image shows the wall plate and the two vertical TV bracket arms.

Шаг 3: Прикрепите кронштейны к телевизору

Carefully place your TV face down on a soft, clean surface. Identify the VESA mounting holes on the back of your TV. Select the appropriate screws, washers, and spacers from the hardware kit that fit your TV's VESA pattern. Attach the two TV bracket arms to the back of your television, ensuring they are centered and securely fastened. The hooks on the bracket arms should face downwards.

Рисунок 2: Крупный план view of the TV bracket arm, highlighting the tilting adjustment knob. This knob allows for fine-tuning the tilt angle of the television once mounted.

Рисунок 3: Подробная информация view of the safety latch mechanism located at the bottom of the TV bracket arm. This latch secures the TV to the wall plate and can be pulled to release the TV for removal.

Step 4: Mount Television to Wall Plate

With an assistant, carefully lift the television with the attached brackets. Hook the top of the TV bracket arms onto the top edge of the wall plate. Gently lower the TV until the brackets fully engage with the wall plate. Ensure the safety latches at the bottom of the TV brackets click into place, securing the TV to the mount.

Шаг 5: Отрегулируйте угол наклона

The mount allows for a tilt adjustment range of +12° to -12°. To adjust the tilt, loosen the tilting knobs on both TV bracket arms (refer to Figure 2). Tilt the TV to your desired viewing angle, then tighten the knobs firmly to secure the position.

Операционная

Once installed, the ONN Tilting TV Wall Mount allows for easy adjustment of your television's vertical viewing angle. Simply loosen the two tilting knobs located on the side of each TV bracket arm, adjust the screen to your preferred angle (up to 12 degrees up or down), and then re-tighten the knobs to lock the position. This feature helps reduce glare and optimize your viewопыт.

Обслуживание

Регулярное техническое обслуживание обеспечивает долговечность и безопасную работу настенного крепления для телевизора.

• Уборка: Для протирки крепления используйте мягкую сухую ткань. Избегайте абразивных чистящих средств или растворителей.
• Периодические проверки: Периодически проверяйте все винты и болты, чтобы убедиться в их надежной фиксации. Со временем вибрации или движение могут привести к ослаблению крепежных элементов.
• Проверка повреждений: Inspect the mount for any signs of damage or wear. If any damage is observed, discontinue use and contact customer support.

Поиск неисправностей

Технические характеристики

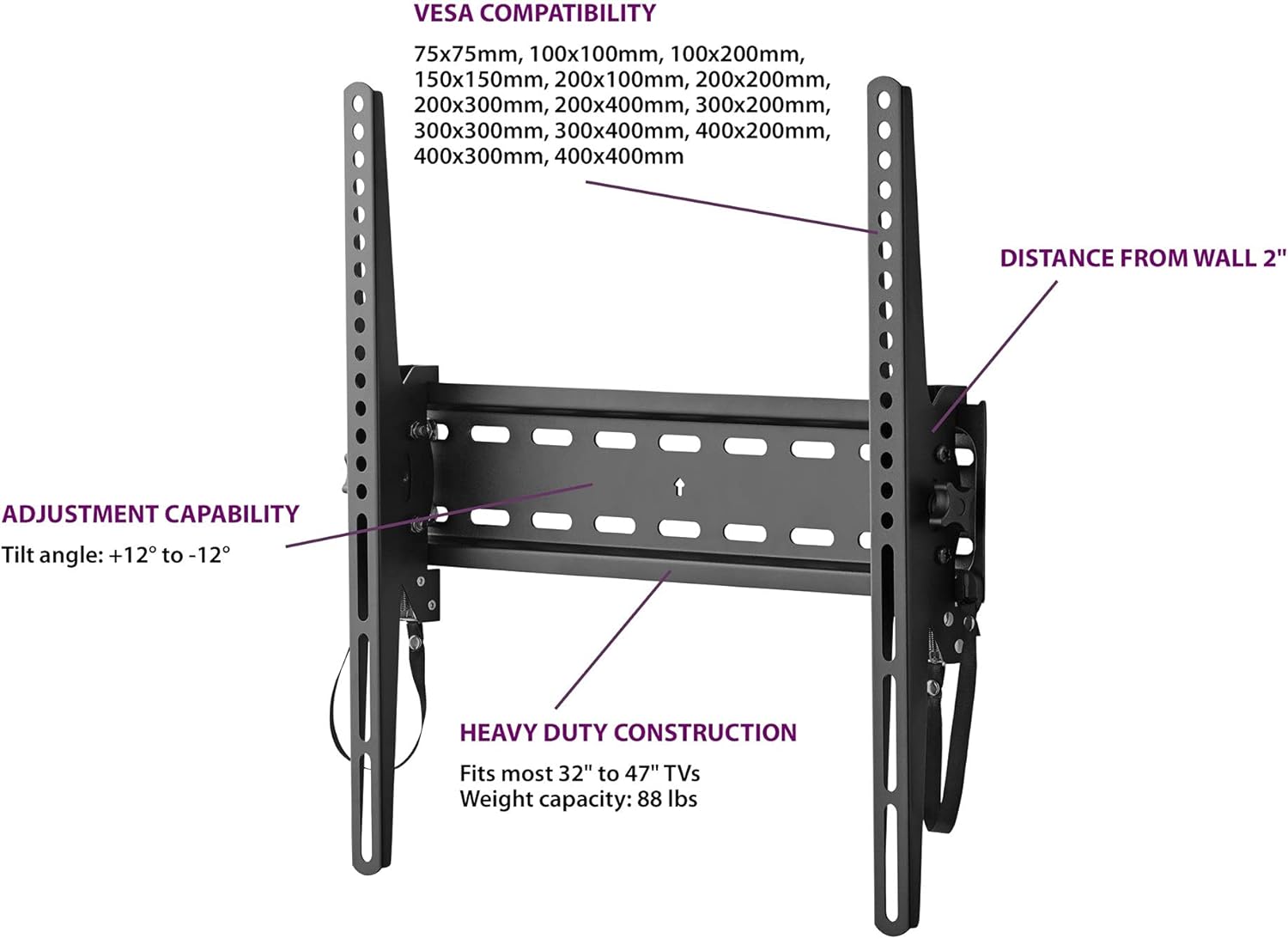

Figure 4: Technical specifications diagram for the ONN Tilting TV Wall Mount, detailing VESA compatibility, tilt adjustment, weight capacity, and distance from the wall.

• Модель: B097KP7RT5
• Бренд: ОНН
• Совместимые размеры телевизоров: 32" - 47"
• Максимальная грузоподъемность: 88 фунта (40 кг)
• Тип движения: Наклон
• Угол наклона: от +12° до -12°
• Расстояние от стены: Примерно 2 дюймов
• VESA-совместимость: 75x75mm, 100x100mm, 100x200mm, 150x150mm, 200x100mm, 200x200mm, 200x300mm, 200x400mm, 300x300mm, 300x400mm, 400x200mm, 400x300mm, 400x400mm
• Цвет: Черный
• Вес товара: 3.99 фунта
• Размеры упаковки: 18.7 x 4.6 x 2.4 дюйма
• СКП: 681131308427

Гарантия и поддержка

For warranty information or technical support, please contact the retailer or the manufacturer directly. Keep your purchase receipt as proof of purchase.

For further assistance, please visit the ONN official webсайте или обратитесь в их отдел обслуживания клиентов.
