PawHut 2-in-1 Dog Bike Trailer Pet Carrier Stroller User Manual

Введение

Thank you for choosing the PawHut 2-in-1 Dog Bike Trailer Pet Carrier Stroller. This versatile product is designed to provide a safe and comfortable travel solution for your pet, functioning both as a convenient pet stroller for walks and a secure bike trailer for cycling adventures. Please read this manual thoroughly before assembly and use to ensure proper operation and the safety of your pet.

Image: The PawHut 2-in-1 Dog Bike Trailer Pet Carrier Stroller, showcasing its primary design in blue and grey.

Image: A man cycling with the PawHut dog trailer attached to his bicycle, demonstrating its use as a bike trailer with a dog comfortably seated inside.

Информация по безопасности

Важный: Failure to follow these safety instructions may result in injury to your pet or yourself.

• Always ensure your pet is securely fastened inside the carrier using the provided safety harness.
• Do not exceed the maximum load capacity of 30 kg. This product is suitable for medium dogs less than 45 cm in length and less than 20 kg in weight.
• Regularly check all connections, bolts, and wheels for tightness and wear before each use.
• Ensure the front wheel is locked when using as a bike trailer.
• Be aware of the overall width (71 cm) of the product, especially when navigating narrow passages or doorways.
• Use caution when turning or braking, especially with a pet inside, to maintain stability.
• The product does not feature a parking brake. Always secure the stroller/trailer when stationary to prevent unintended movement.
• Reflectors are included for visibility in low-light conditions. Ensure they are clean and unobstructed.
• Do not leave your pet unattended in the stroller or trailer.

Список компонентов

Перед началом сборки убедитесь, что все компоненты присутствуют:

• Main Carrier Frame (Fabric Shell)
• Rear Wheels (2x, 16" inflatable)
• Front Wheel (1x, 6" universal)
• Руль
• Hitch Coupler / Tow Bar (for bike trailer mode)
• Safety Harness (internal)
• Подстаканник
• Assembly Hardware (bolts, pins, etc.)

Настройка и сборка

Follow these steps to assemble your PawHut 2-in-1 Pet Carrier Stroller/Bike Trailer:

1. Разверните основной каркас: Carefully unfold the main carrier frame until it clicks into its upright position. Ensure all locking mechanisms are engaged.
2. Прикрепите задние колеса: Insert the two 16-inch inflatable rear wheels into their respective axles on the main frame. Ensure they are securely locked in place. You may need to press a button or lever to engage the lock.
3. Установить переднее колесо: Attach the 6-inch universal front wheel assembly to the front of the carrier. This wheel is rotatable for stroller mode and can be locked for bike trailer mode.
4. Прикрепить руль: Slide the handlebar into the designated slots at the rear of the carrier until it locks securely. Adjust the height if applicable.
5. Install Hitch Coupler (for Bike Trailer Mode): If using as a bike trailer, attach the hitch coupler to the rear axle of your bicycle. Ensure it is compatible with bicycle wheels sized 20"-28". Connect the tow bar from the trailer to this coupler.
6. Прикрепите подстаканник: Secure the cup holder to the handlebar or designated attachment point.
7. Окончательные проверки: Before first use, double-check all connections, wheels, and locking mechanisms to ensure they are secure. Inflate tires to the recommended pressure if necessary.

Image: Visual representation of the product's dual functionality as a pet stroller and a pet trailer.

Image: Detailed diagrams illustrating the folded dimensions for compact storage, both with and without wheels and tow bar.

Изображение: крупный план view of the connector installation process, showing how the trailer attaches to a bicycle's rear axle.

Инструкция по эксплуатации

Using as a Pet Stroller

• Ensure the front wheel is unlocked for 360° rotation, allowing for easy maneuverability.
• Place your pet inside through the large front door. Secure them with the internal safety harness.
• Push the stroller using the handlebar.
• When stopping, always hold the handlebar firmly as there is no parking brake.

Image: A woman demonstrating the use of the PawHut product in stroller mode, highlighting its ease of pushing.

Using as a Bike Trailer

• Ensure the front wheel is locked in a fixed forward position.
• Attach the tow bar to the hitch coupler on your bicycle's rear axle. Ensure a secure connection.
• Поместите питомца внутрь и закрепите его с помощью внутреннего страховочного ремня.
• Ride your bicycle, being mindful of the added length and weight of the trailer. Practice in an open area before longer trips.
• Always use caution when turning and braking.

Image: A man cycling with the PawHut dog trailer attached to his bicycle, demonstrating its use as a bike trailer with a dog comfortably seated inside.

Складывание для хранения

• Remove your pet from the carrier.
• Release the handlebar locking mechanisms and fold it down.
• Locate the folding clips (often on the sides of the frame) and release them to collapse the main carrier body.
• For more compact storage, the rear wheels and tow bar can be easily removed.

Image: Detailed diagrams illustrating the folded dimensions for compact storage, both with and without wheels and tow bar.

Обслуживание

• Уборка: The fabric shell can be wiped clean with a damp cloth and mild soap. Do not use harsh chemicals. Allow to air dry completely before folding or storing.
• Уход за шинами: Regularly check the tire pressure of the inflatable rear wheels. Maintain recommended pressure for optimal performance and ride comfort. Inspect tires for punctures or excessive wear.
• Смазка: Periodically lubricate moving parts such as wheel axles and folding mechanisms with a silicone-based lubricant to ensure smooth operation.
• Хранилище: Store the stroller/trailer in a dry, cool place away from direct sunlight when not in use to prolong its lifespan.

Поиск неисправностей

Технические характеристики

• Номер модели: Д00-112БУ
• Габаритные размеры (Д x Ш x В): 140 см х 71 см х 105 см
• Inner Dimensions (L x W x H): 70 см х 47 см х 55 см
• Front Door Dimensions (L x W): 52 см х 33 см
• Максимальная грузоподъемность: 30 кг
• Recommended Pet Length: Менее 45 см
• Рекомендуемый вес питомца: Менее 20 кг
• Размер заднего колеса: 16 inches (inflatable)
• Размер переднего колеса: 6 inches (universal)
• Вес продукта: 13.9 кг
• Материал оправы: Легированная сталь
• Цвет: Синий

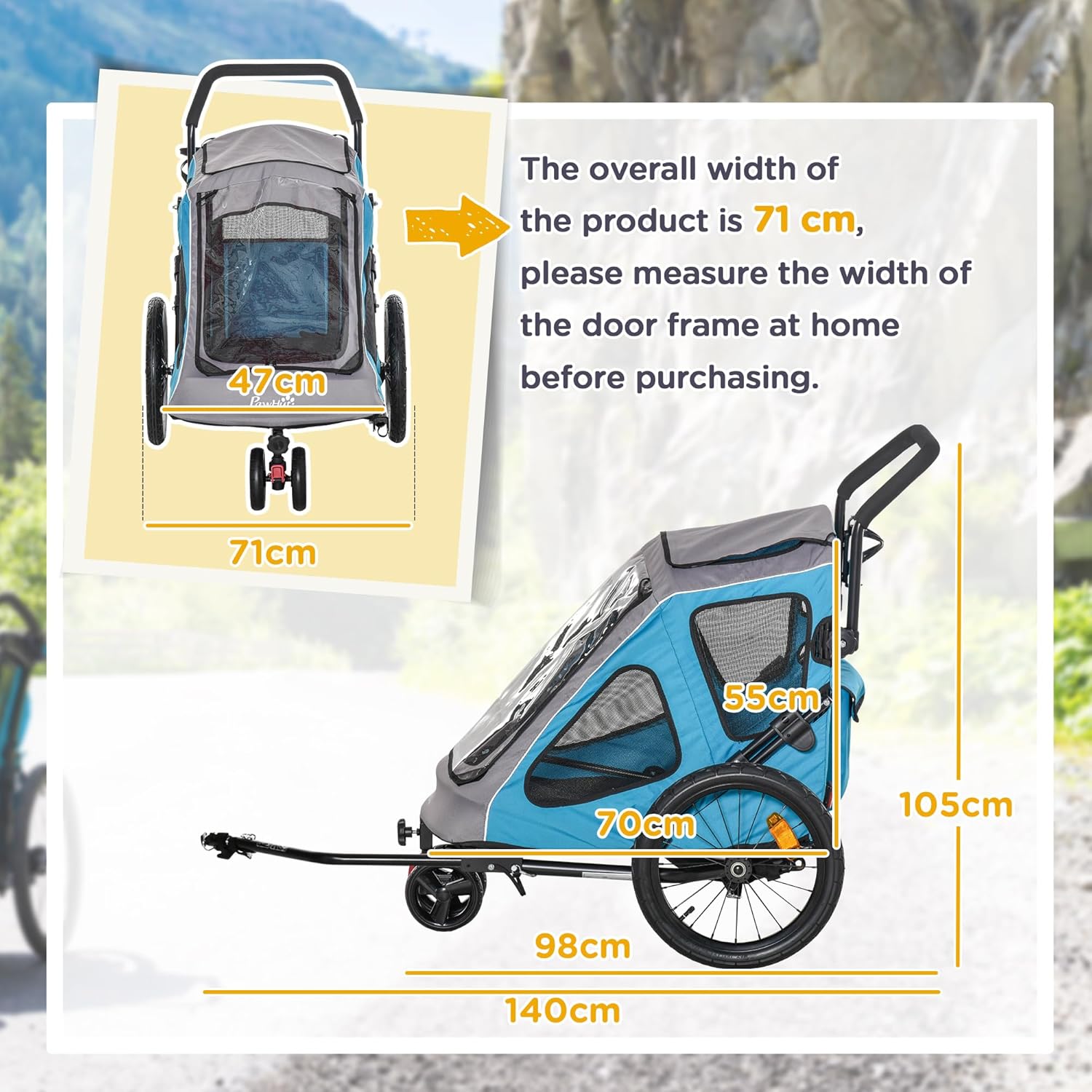

Image: A detailed diagram illustrating the overall and internal dimensions of the PawHut pet carrier stroller.

Image: A visual guide indicating suitable dog breeds and a note on measuring pet body length and weight for compatibility.

Гарантия и поддержка

For warranty information, technical support, or replacement parts, please contact PawHut customer service through your original point of purchase or visit the official PawHut website. Please have your model number (D00-112BU) and purchase date available when contacting support.
