SHIMANO SG-S7001-11 Sun Gear 2 for Internally Geared Hub Instruction Manual

1. Введение

This manual provides essential information for the proper installation, operation, and maintenance of the SHIMANO SG-S7001-11 Sun Gear 2. This component is designed to enhance the performance and durability of SHIMANO's internally geared hubs, ensuring smooth shifting and reliable operation. Please read these instructions carefully before proceeding with installation or use.

2. Продукт закончилсяview

The SG-S7001-11 Sun Gear 2 is a precision-engineered component for internally geared bicycle hubs. It is constructed from durable, corrosion-resistant materials, including precision-machined steel and alloys, to withstand various riding conditions. This sun gear is designed for seamless integration within SHIMANO's 11-speed internally geared hubs, such as the Alfine and Nexus series, providing consistent power transfer and minimizing gear noise.

Основные характеристики:

• Precision-engineered for durable and efficient internally geared hubs.
• Constructed from corrosion-resistant materials for optimal durability.
• Utilizes advanced engineering for seamless gear changes and enhanced torque transfer.
• Compatible with a wide range of SHIMANO internally geared hubs and dynamo systems.

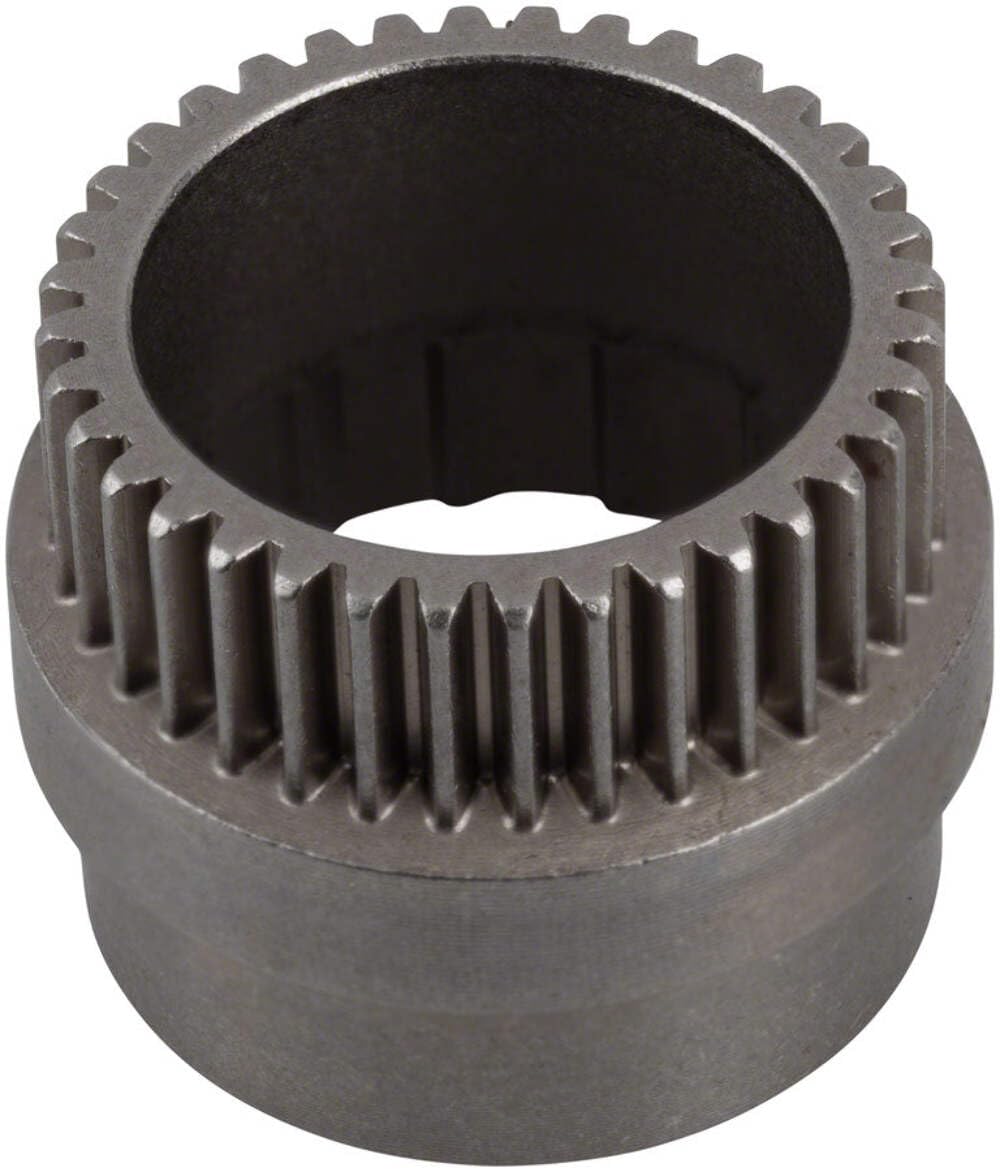

Figure 1: The SHIMANO SG-S7001-11 Sun Gear 2. This image shows the compact, metallic sun gear component, designed for integration within a bicycle's internally geared hub system.

3. Настройка и установка

Installation of the SG-S7001-11 Sun Gear 2 requires familiarity with internally geared hub mechanics. It is recommended that installation be performed by a qualified bicycle mechanic to ensure proper function and safety. Incorrect installation can lead to component damage or unsafe operation.

Общие рекомендации по установке:

1. Ensure the internally geared hub is clean and free from debris before installation.
2. Refer to the specific service manual for your SHIMANO internally geared hub model for detailed, step-by-step instructions.
3. Carefully align the sun gear within the hub assembly, ensuring all teeth engage correctly.
4. Apply appropriate lubricants as specified in your hub's service manual.
5. Reassemble the hub components, ensuring all fasteners are tightened to the manufacturer's recommended torque specifications.

For detailed instructions, consult the official SHIMANO technical documentation for your specific internally geared hub model. You can typically find these resources on the SHIMANO webсайт.

4. Принципы работы

The SG-S7001-11 Sun Gear 2 is an integral part of the planetary gear system within SHIMANO's internally geared hubs. It works in conjunction with planet gears and a ring gear to provide multiple gear ratios. When the rider shifts gears, the internal mechanism adjusts the engagement of these components, altering the drive ratio and allowing for smooth transitions between speeds without external derailleurs.

This design contributes to a clean, low-maintenance drivetrain and protects the gearing components from external elements, enhancing durability and reliability in various riding conditions.

5. Техническое обслуживание

Regular maintenance is crucial for extending the lifespan and ensuring the optimal performance of your internally geared hub and the SG-S7001-11 Sun Gear 2. While internally geared hubs are known for their low maintenance, periodic checks and servicing are recommended.

Рекомендации по техническому обслуживанию:

• Уборка: Keep the exterior of the hub clean. Avoid using high-pressure washers directly on the hub seals.
• Смазка: Consult your hub's service manual for recommended lubrication intervals and types of lubricants. Internal components, including the sun gear, require specific greases or oils.
• Инспекция: Periodically inspect the hub for any signs of wear, damage, or loose components. Pay attention to any unusual noises during operation.
• Профессиональное обслуживание: For internal hub servicing, including inspection and replacement of components like the sun gear, it is highly recommended to seek assistance from an authorized SHIMANO service center or a professional bicycle mechanic.

6. Поиск Неисправностей

If you experience issues with your internally geared hub after installing the SG-S7001-11 Sun Gear 2, consider the following general troubleshooting steps. For complex issues, professional assistance is advised.

Распространенные проблемы и решения:

• Сложность переключения:
  • Check cable tension and adjustment for the shifter.
  • Ensure the shift mechanism is properly aligned and free from obstruction.
  • Verify that the sun gear and other internal components are correctly seated.
• Unusual Noises (Grinding, Clicking):
  • Indicates potential misalignment or wear of internal components. Disassembly and inspection by a professional may be necessary.
  • Check for adequate lubrication within the hub.
• Loss of Drive or Slipping:
  • Could be due to severe wear of internal gears, incorrect assembly, or a damaged sun gear.
  • Immediate professional inspection is recommended to prevent further damage.

Always consult the specific service manual for your hub model or contact a SHIMANO authorized service center for detailed troubleshooting and repair.

7. Технические характеристики

8. Информация о гарантии

The SHIMANO SG-S7001-11 Sun Gear 2 is covered by a Limited Warranty. For specific terms, conditions, and duration of the warranty, please refer to the official warranty documentation provided with your product or visit the official SHIMANO webСохраните чек о покупке для предъявления гарантийных претензий.

9. Поддержка и контакты

For technical assistance, detailed service manuals, or warranty inquiries, please contact SHIMANO customer support or visit their official webсайт:

• SHIMANO Official Webсайт: велосипед.shimano.com
• Авторизованные сервисные центры: Locate a SHIMANO authorized service center near you for professional installation, maintenance, and repairs.

Always ensure you are using genuine SHIMANO replacement parts for optimal performance and safety.
