Введение
This manual provides detailed instructions for the setup, operation, and maintenance of your Pyle PDWM2958B.5 Compact UHF Wireless Microphone System. Please read this manual thoroughly before using the product to ensure proper function and to prevent damage.

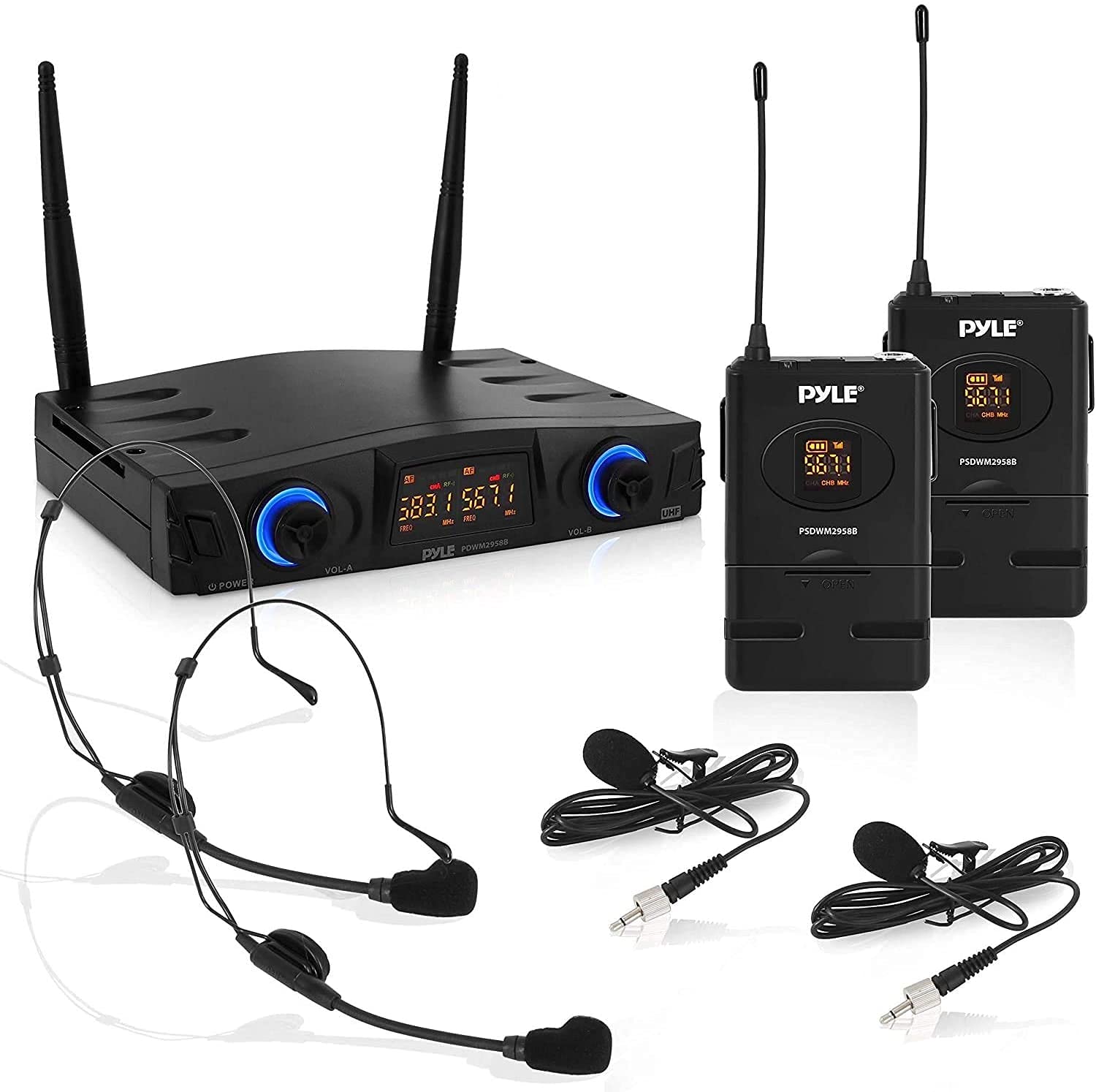

Figure 1: Pyle PDWM2958B.5 System Overview
Что в коробке?
Убедитесь, что в упаковке присутствуют все компоненты:
- База микрофонного приемника
- (2) Belt-Pack Transmitters
- (2) Микрофоны для гарнитуры
- (2) петличных микрофона
- (4) 'AA' Batteries
- USB-кабель
Рисунок 2: Содержимое упаковки
Характеристики продукта
- Wireless Belt-Pack Microphone System
- 2-Channel, UHF Selectable Frequency Design
- Lab Tested Distortion-Free Pro Audio Performance
- USB Powered Microphone Receiver Base
- Compact Tabletop Receiver Design
- Independent Channel Adjustable Volume Settings
- Receiver with Digital LCD Display for AF/RF Audio Signal Indicators & Frequency Readout
- Dual Antenna for Extended Wireless Range
- Интегрированная схема с низким уровнем шума
- 1/4'' Unbalanced Audio Output Jack
- (2) XLR (3-Pin) Balanced Audio Input Connectors
Figure 3: Receiver Front Panel with LCD Display
Figure 4: Headset and Lavalier Microphones
Настраивать
- Питание приемника: Connect the supplied USB cable to the receiver's Micro USB port and to a DC 5V USB power source (e.g., USB wall adapter, computer USB port).
- Connecting Audio Output:
- For unbalanced audio, connect a 1/4'' audio cable from the receiver's 1/4'' Unbalanced Audio Output Jack to your mixer or ampпожизненнее.
- For balanced audio, connect XLR (3-Pin) cables from the receiver's Balanced Audio Input Connectors (A and B) to your mixer or ampпожизненнее.
Figure 5: Receiver Connections
- Installing Batteries in Belt-Pack Transmitters:
- Open the battery compartment on each belt-pack transmitter.
- Insert two 'AA' batteries into each transmitter, observing correct polarity.
- Надежно закройте батарейный отсек.
Figure 6: Belt-Pack Battery Installation
- Connecting Microphones to Belt-Pack Transmitters: Plug the headset or lavalier microphone into the input jack on the belt-pack transmitter.
- Positioning Antennas: Extend the dual antennas on the receiver for optimal signal reception.
Инструкция по эксплуатации
- Включение питания:
- Press the Power ON/OFF button on the receiver. The LCD display will illuminate.
- Slide the Power ON/OFF switch on each belt-pack transmitter to the 'ON' position.
- Выбор частоты: The system features selectable UHF frequencies. Refer to the receiver's LCD display for current frequency readout. If interference occurs, consult the full product manual for instructions on changing frequencies (not detailed in provided data).
- Регулировка громкости: Use the independent channel adjustable volume settings on the receiver to control the output level of each microphone.
- Сигнал мониторинга: The receiver's digital LCD display shows AF (Audio Frequency) and RF (Radio Frequency) signal indicators, allowing you to monitor the connection status.
- Беспроводная работа: Ensure the belt-pack transmitters are within the wireless operation range of up to 165 feet from the receiver for optimal performance.
Медиа-ресурсы
No official product videos were found in the provided data. For additional visual guides or demonstrations, please check the manufacturer's official webсайт или каналы поддержки.
Обслуживание
- Уборка: Use a soft, dry cloth to clean the receiver and transmitters. Do not use liquid cleaners or solvents.
- Замена батареи: Replace 'AA' batteries in the belt-pack transmitters when the low battery indicator appears or performance degrades. Always use fresh batteries of the same type.
- Хранилище: When not in use for extended periods, remove batteries from the transmitters and store the system in a cool, dry place.
Поиск неисправностей
| Проблема | Возможная причина | Решение |
|---|---|---|
| Нет звука с микрофона |
|
|
| Помехи или плохое качество звука |
|
|
| Receiver LCD not displaying |
|
|
Технические характеристики
| Особенность | Деталь |
|---|---|
| Wireless Mic System Type | Диапазон УВЧ (сверхвысокая частота) |
| Selectable Channel Frequency | (2x) 16 Channels |
| Диапазон действия беспроводной связи | До 165 футов. |
| Частотная характеристика звука | 30-20кГц |
| Изображение и ложное отклонение | >70 дБ |
| Уровень выходного аудиосигнала | +/- 300 мВ |
| Выходное сопротивление | 600 Ом |
| Стабильность частоты | +/- 0.005% |
| Максимальное отклонение | +/- 15 кГц |
| КНИ | 0.03% |
| Чувствительность | -96 дБм |
| Строительный материал | Engineered ABS Housing |
| Потребляемая мощность | <85мА |
| USB-интерфейс | Микро-USB |
| Belt-Pack Power | (2) x 'AA' Batteries (Each) |
| Источник питания приемника | USB, DC 5V |
| Belt-Pack Dimensions (L x W x H) | 3.94'' x 2.46'' x 0.87'' -inches (Each) |
| Receiver Base Dimensions (L x W x H) | 8.08'' x 6.97'' x 1.72'' дюймов |
Гарантия и поддержка
For warranty information and technical support, please refer to the documentation included with your purchase or visit the official Pyle webсайт. Вы также можете посетить Магазин Pyle на Amazon Для получения дополнительной информации о продукте и ресурсах поддержки.
