SIGMA BC 23.16 STS Set Wireless Cyclocomputer User Manual

1. Введение

The SIGMA BC 23.16 STS Set is a high-performance wireless cyclocomputer designed to provide comprehensive data for your cycling activities. This manual will guide you through the installation, setup, operation, and maintenance of your device to ensure optimal performance and longevity.

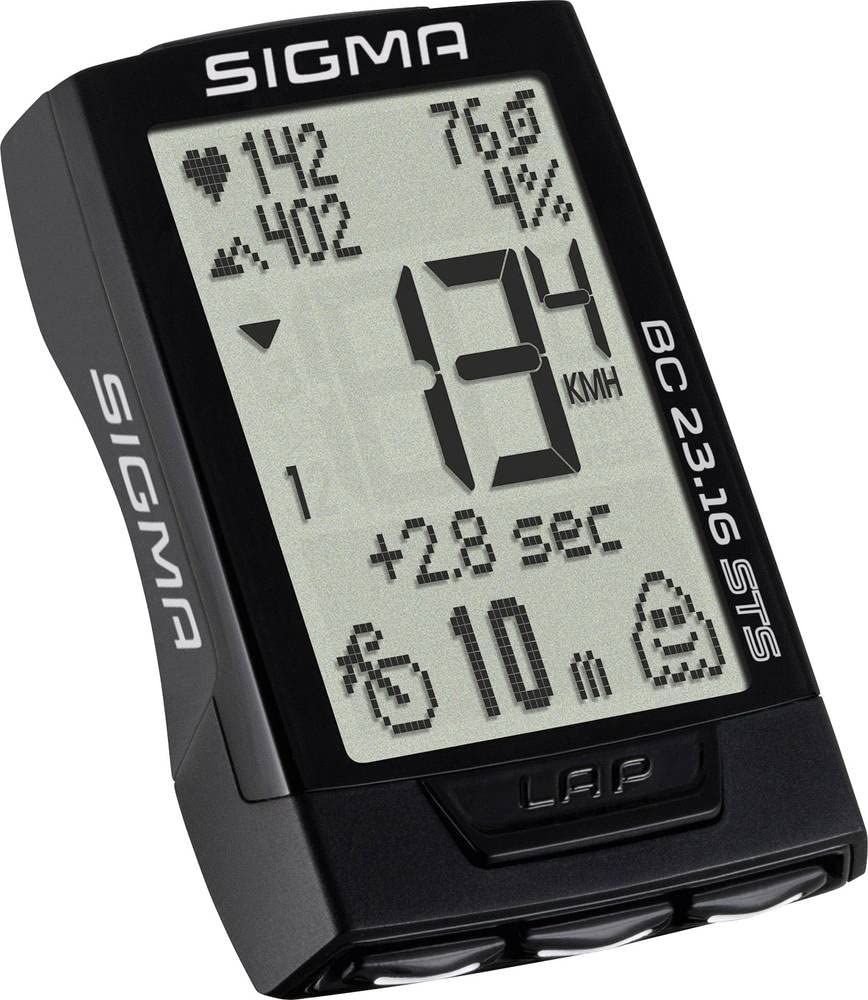

Image: The main unit of the SIGMA BC 23.16 STS Set cyclocomputer, displaying various metrics.

2. Содержимое упаковки

Перед началом установки убедитесь, что все компоненты присутствуют в комплекте:

• SIGMA BC 23.16 STS Cyclocomputer Unit
• STS Speed Transmitter
• STS Cadence Transmitter (if included in set)
• R1 DUO Comfortex+ Heart Rate Transmitter (if included in set)
• Handlebar/Stem Mount
• Говорил Магнит
• Cadence Magnet (if included in set)
• Mounting Material (O-rings, cable ties)
• Batteries (CR2032 for computer, CR2032 for speed/cadence transmitters, CR2032 for heart rate transmitter)
• Руководство по эксплуатации (данный документ)

Image: All components included in the SIGMA BC 23.16 STS Set package, laid out for inspection.

3. Настройка и установка

3.1 Установка аккумулятора

The cyclocomputer and transmitters come with pre-installed batteries. If replacement is needed, use CR2032 batteries. Ensure correct polarity when inserting new batteries.

Изображение: View of the battery compartment for the SIGMA BC 23.16 STS cyclocomputer, showing the CR2032 battery.

Примечание: An integrated memory chip saves all total values and settings when changing the battery, preventing data loss.

3.2 Mounting the Cyclocomputer and Transmitters

1. Handlebar/Stem Mount: Secure the mount to your handlebar or stem using the provided O-rings or cable ties.
2. Speed Transmitter: Attach the speed transmitter to the front fork, ensuring it aligns with the spoke magnet. The distance between the transmitter and magnet should be approximately 5-10 mm.
3. Spoke Magnet: Fasten the magnet to a spoke on your front wheel.
4. Cadence Transmitter (if applicable): Mount the cadence transmitter to the chainstay, aligning it with the cadence magnet on the crank arm.
5. Heart Rate Transmitter (if applicable): Wear the heart rate chest strap directly on your skin, just below your chest muscles.

3.3 Начальные настройки

Upon first use or after a battery change, you will need to configure basic settings:

• Язык: Выберите предпочитаемый язык.
• Единицы: Choose between kilometers (km/h) or miles (mph) for speed and distance.
• Размер колеса: Accurately measure and input your wheel circumference for precise speed and distance readings. Refer to your bicycle tire for circumference values or measure manually.
• Формат времени: Set 12h or 24h format.
• Персональные данные: Input age, weight, and gender for accurate calorie and heart rate zone calculations.

Image: Diagram illustrating the button layout and their primary functions on the SIGMA BC 23.16 STS cyclocomputer.

4. Инструкция по эксплуатации

The BC 23.16 STS features an intuitive interface with multiple functions accessible via its buttons.

4.1 Дисплей и навигация

The cyclocomputer features a 2.1-inch display with a backlight function for visibility in various lighting conditions. Use the buttons on the device to navigate through different data screens and menus.

Image: The 2.1-inch screen of the SIGMA BC 23.16 STS cyclocomputer, highlighting its dimensions and backlight capability.

4.2 основные функции

The BC 23.16 STS offers over 23 functions, including:

• Current, Average, and Maximum Speed
• Расстояние (за поездку, общее)
• Ride Time (Trip, Total)
• Часы
• Температура
• Heart Rate (Current, Average, Maximum, Zones)
• Cadence (Current, Average, Maximum)
• Power (Current, Average, Maximum)
• Altitude Functions (Current, Ascent, Descent, Gradient)
• Lap Function
• Потребление калорий

4.3 Automatic Bike Recognition

The cyclocomputer supports automatic recognition for up to two different bikes. This allows you to use the same computer on multiple bicycles without manually changing settings. Ensure each bike has its own speed and cadence transmitters paired to the computer.

Image: Illustration of the automatic bike recognition feature, showing two different cyclists with their respective bikes (Bike 1 and Bike 2).

5. Техническое обслуживание

Proper maintenance ensures the longevity and accuracy of your SIGMA BC 23.16 STS Set.

• Уборка: Clean the cyclocomputer and transmitters with a soft, damp ткань. Не используйте агрессивные химикаты или абразивные чистящие средства.
• Замена батареи: Replace batteries when the low battery indicator appears. Refer to section 3.1 for battery installation details.
• Хранилище: Если устройство не используется в течение длительного времени, храните его в прохладном, сухом месте, вдали от прямых солнечных лучей.
• Водостойкость: Устройство водостойкое, но не водонепроницаемое. Избегайте погружения в воду.

6. Поиск Неисправностей

If you encounter issues with your cyclocomputer, refer to the following common problems and solutions:

7. Технические характеристики

8. Гарантия и поддержка

Гарантия: The product information indicates "Nessuna" (None) for product warranty. Please refer to your point of purchase for any specific return or exchange policies.

Поддерживать: For further assistance, technical questions, or detailed information not covered in this manual, please visit the official SIGMA webили свяжитесь с их службой поддержки клиентов. Более подробную информацию можно найти на сайте. SIGMA Store on Amazon.
