Bilstein B8 Front Sport Shock Absorber Instruction Manual

1. Продукт закончилсяview

This manual provides essential information for the installation, operation, and maintenance of your Bilstein B8 Front Sport Shock Absorber. The Bilstein B8 series is designed for enhanced performance and is a direct fit for specific Audi models.

Image 1.1: The Bilstein B8 Front Sport Shock Absorber. This component is a monotube, spring-bearing shock absorber designed for the front axle of compatible Audi vehicles.

2. Особенности продукта

• Monotube Design: Provides consistent performance and fade-free operation.
• Sport Tuning: Engineered for sportier handling and improved road feedback.
• Подходит для конкретного автомобиля: Designed for Audi A4, A5, and Q5 models (B8 chassis).
• Прочная конструкция: Made from stainless steel with a silver exterior finish for longevity.
• Front Axle Application: Specifically for the front position of the vehicle.

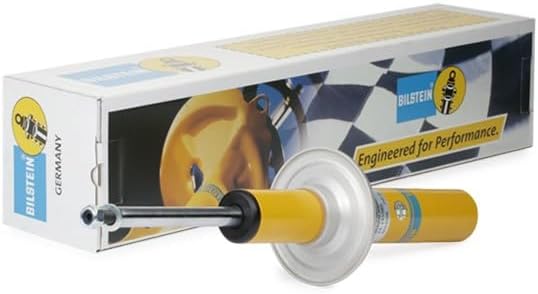

Image 2.1: Bilstein B8 Front Sport Shock Absorber shown with its original packaging, highlighting the brand's commitment to quality.

3. Настройка и установка

Installation of shock absorbers requires specialized tools and automotive knowledge. It is highly recommended that this product be installed by a qualified automotive technician.

3.1 Проверки перед установкой

• Verify that the shock absorber model (24-145985) is correct for your specific Audi A4, A5, or Q5 model.
• Inspect the shock absorber for any signs of shipping damage.
• Ensure all necessary mounting hardware is available.

3.2 General Installation Steps (Consult Service Manual)

1. Безопасно поднимите и зафиксируйте автомобиль на ровной поверхности.
2. Remove the wheel from the corner where the shock is to be replaced.
3. Carefully disconnect any brake lines, ABS sensors, or sway bar links attached to the strut assembly.
4. Unbolt the lower mounting points of the existing shock absorber.
5. Access and unbolt the upper mounting points from the engine bay or wheel well.
6. Remove the old shock absorber assembly.
7. Transfer any reusable components (e.g., spring, top mount, dust boot) to the new Bilstein B8 shock absorber, using appropriate spring compressors if necessary.
8. Install the new Bilstein B8 shock absorber, securing the upper and lower mounting points to manufacturer specifications.
9. Reconnect all disconnected components.
10. Установите колесо на место и опустите автомобиль.
11. После установки необходимо выполнить регулировку развала-схождения колес, чтобы обеспечить надлежащую управляемость автомобиля и уменьшить износ шин.

Изображение 3.1: вид сбоку view of the Bilstein B8 shock absorber, illustrating its compact design and mounting points.

Image 3.2: Close-up of the shock absorber's piston rod and upper mounting hardware, critical components for secure installation.

4. Эксплуатационные соображения

After installation, the Bilstein B8 Front Sport Shock Absorbers will provide a firmer, more controlled ride compared to standard shock absorbers. This is characteristic of sport-tuned suspension components. Allow a short break-in period for the new shocks to settle. Pay attention to any unusual noises or handling characteristics immediately after installation and consult your installer if concerns arise.

5. Техническое обслуживание

Bilstein B8 shock absorbers are designed for long-term durability with minimal maintenance. However, regular inspection is recommended as part of your vehicle's routine service schedule.

• Визуальный осмотр: Periodically check the shock absorbers for signs of fluid leaks, physical damage, or corrosion.
• Точки крепления: Убедитесь, что все крепежные болты надежно затянуты.
• Пылезащитная обувь: Inspect dust boots for tears or damage, as they protect the piston rod from contaminants.

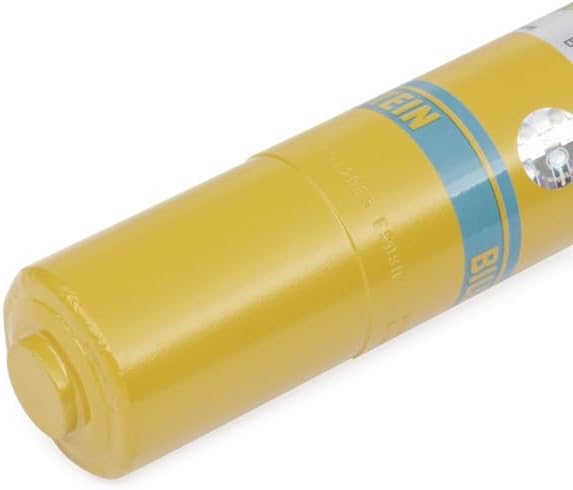

Image 5.1: Close-up of the Bilstein B8 shock absorber body, showing the durable yellow finish and product labeling.

6. Поиск Неисправностей

If you experience issues after installing your Bilstein B8 Front Sport Shock Absorbers, consider the following common troubleshooting steps:

• Необычные шумы: Check all mounting hardware for proper torque. Ensure no components are rubbing against each other.
• Poor Handling/Uneven Ride: Verify that the correct shock absorber was installed on each side. Confirm that a wheel alignment was performed after installation.
• Утечки жидкости: A small amount of oil residue can be normal, but significant fluid leakage indicates a seal failure. In such cases, the shock absorber may need replacement.

For persistent issues, consult with a certified automotive technician or contact Bilstein customer support.

7. Технические характеристики

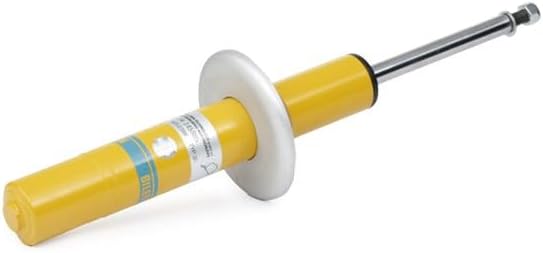

Изображение 7.1: Под углом view of the Bilstein B8 shock absorber, showcasing its overall construction and finish.

8. Гарантия и поддержка

For specific warranty information regarding your Bilstein B8 Front Sport Shock Absorber, please refer to the documentation included with your product or visit the official Bilstein website. For technical support or assistance with installation, it is recommended to contact Bilstein customer service directly or consult with a certified automotive professional.
