Red Lion RL22G10-3W2V 4-inch Submersible Deep Well Pump Instruction Manual

Введение

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Red Lion RL22G10-3W2V 4-inch Submersible Deep Well Pump. Please read all instructions carefully before beginning installation or operation to ensure proper function and to prevent injury or damage.

Image: The Red Lion RL22G10-3W2V 4-inch Submersible Deep Well Pump with its control box.

Информация по безопасности

Always observe safety precautions to reduce the risk of injury, fire, or electric shock. This pump is designed for specific applications; using it for other purposes may void the warranty and create hazards.

• Электробезопасность: All electrical wiring must be performed by a qualified electrician in accordance with national and local electrical codes. Ensure the power supply matches the pump's voltage требования (230 Вольт).
• Заземление: The pump and control box must be properly grounded to prevent electrical shock.
• Качество воды: This pump is NSF/ANSI 372 certified for potable water. Do not use for flammable liquids or chemicals.
• Well Diameter: Designed for 4-inch I.D. or larger wells.
• Предупреждение о предложении 65: Этот продукт может содержать химические вещества, которые, как известно в штате Калифорния, вызывают рак, врожденные дефекты или другие нарушения репродуктивной системы.

Продукт болееview и особенности

The Red Lion RL22G10-3W2V is a robust 4-inch submersible deep well pump designed for reliable water delivery. It features a durable stainless steel pump casing and thermoplastic components for longevity.

Основные характеристики:

• Погружной дизайн: Fits 4-inch diameter driven wells or larger.
• Built-in Check Valve: Helps prevent rapid cycling and extends motor life.
• Built-in Suction Screen: Protects impellers from debris.
• Прочная конструкция: Насос из нержавеющей сталиasing with thermoplastic discharge and motor bracket.
• Control Box Included: A Red Lion/VMC branded 1 HP, 230 Volt, 3-wire control box is supplied.
• Potable Water Certified: NSF/ANSI 372 certified for clean drinking water applications.

Image: Detailed diagram illustrating the internal features of the RL Series pump, including the 1-1/4" FNPT Thermoplastic Discharge Head, Built-in Check Valve, Multiple-Stage Design, Stainless Steel Body, Glass-filled Thermoplastic Impeller, and Built-in Suction Screen.

Image: The included Red Lion/VMC Submersible Motor Control Box, showing its external casing and internal wiring.

Image: The Red Lion RL Series Deep Well Submersible Pump is NSF/ANSI 372 Certified for Clean Drinking Water, as depicted by water flowing into a glass.

Технические характеристики

The following table outlines the technical specifications for the Red Lion RL22G10-3W2V pump:

Image: Dimensional drawing of the RL22G10-3W2V pump, including overall height, pump length, motor length, and diameter.

Image: Performance table detailing Gallons Per Minute (GPM) at various discharge pressures (PSI) and depths to water, along with shut-off feet.

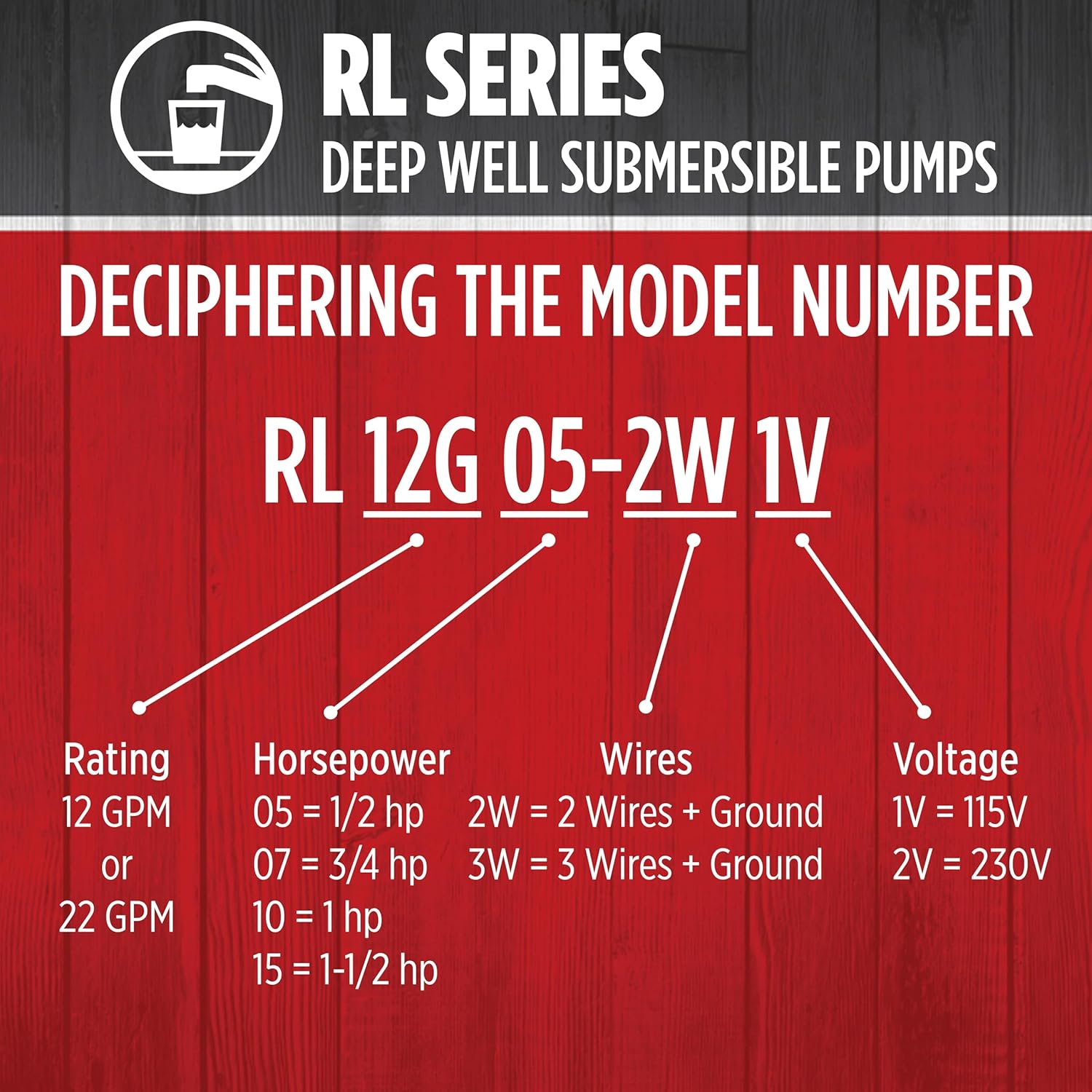

Image: Diagram explaining how to decipher the RL Series model number, breaking down components like rating, horsepower, wires, and voltage.

Настройка и установка

Proper installation is critical for the performance and longevity of your deep well pump. It is highly recommended that installation be performed by a qualified professional or licensed electrician.

Шаги установкиview:

1. Подготовьте колодец: Обеспечьте наличие колодцаasing is clean and free of debris. Verify the well diameter is sufficient for the 4-inch pump.
2. Assemble Pump Components: Connect the pump to the motor and attach the drop pipe. Secure the submersible cable along the drop pipe.
3. Установка блока управления: Mount the control box in a dry, accessible location, typically near the pressure tank.
4. Электрические соединения: Wire the pump to the control box and the control box to the main power supply, following the wiring diagram provided in the included installation manual. Ensure all connections are watertight and properly grounded.
5. Опустите насос: Carefully lower the pump into the well using appropriate lifting equipment, ensuring it is suspended at the correct depth above the well bottom.
6. Подключение сантехники: Connect the drop pipe to the well cap and then to the rest of the plumbing system, including the pressure tank, pressure switch, and pressure relief valve.
7. Тестовая система: Before final sealing, test the pump for proper operation, pressure, and leaks.

Image: A comprehensive diagram illustrating the components and layout of a deep well submersible pump installation, including the well cap, well casing, drop pipe, submersible pump, control box, pressure tank, and associated plumbing.

Image: Visual guide for making secure piping connections during pump installation.

Инструкция по эксплуатации

Once installed, the Red Lion RL22G10-3W2V pump operates automatically based on the pressure switch settings. Ensure the well has sufficient water before starting the pump to prevent dry running.

• Первоначальный запуск: After installation, slowly open a faucet to allow air to escape the system. The pump will start when the pressure drops below the cut-in setting of the pressure switch.
• Мониторинг: Periodically check the system pressure and pump performance. Listen for unusual noises or vibrations.
• Отключение питания: Always disconnect power at the circuit breaker or fuse box before performing any service or maintenance on the pump or control box.

Обслуживание

Regular maintenance ensures optimal performance and extends the life of your Red Lion deep well pump.

• Ежегодный осмотр: Have a qualified professional inspect the pump system annually, including the pump, motor, control box, and wiring.
• Check Pressure Tank: Verify the air charge in the pressure tank periodically.
• Clean Suction Screen: If water flow decreases, the suction screen may be partially blocked and require cleaning. This typically requires pulling the pump from the well.
• Подготовка к зиме: In areas subject to freezing temperatures, ensure all exposed pipes and components are properly insulated or drained to prevent freeze damage.

Поиск неисправностей

This section provides solutions to common issues you might encounter with your deep well pump. For complex problems, contact a qualified service technician.

Информация о гарантии

The Red Lion RL22G10-3W2V Submersible Deep Well Pump comes with a 3-летняя гарантия производителя. Please retain your proof of purchase for warranty claims. For detailed terms and conditions, refer to the warranty documentation included with your product or contact Red Lion customer support.

Поддержка и контакты

For technical assistance, product selection, installation help, or maintenance inquiries, please contact Red Lion customer support.

• Техническая поддержка: 1-888-885-9254
• Интернет-ресурсы: Visit the official Red Lion website for additional manuals, FAQs, and product information.

Image: A focus image on the Red Lion brand, emphasizing their commitment to quality and innovation.
